Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates

Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates
Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates
Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates

Gambar besar :  Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates

Detail produk:
Tempat asal: Cina
Nama merek: Minetech
Sertifikasi: ISO9001
Nomor model: Baut gesekan bawah tanah 42mm
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: $3-$15
Kemasan rincian: 1/karton
Waktu pengiriman: 15-30 hari
Syarat-syarat pembayaran: Serikat Barat, MoneyGram, T/T, L/C
Menyediakan kemampuan: 30000 lembar per bulan
Kontak

Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates

Deskripsi
Nama Produk: baut gesekan bawah tanah Kata kunci: Bolt gesekan
Tipe model: 47mm Warna: disesuaikan
Kemasan: Kasing kayu Jenis pemrosesan: Penempaan
Jenis mesin: Rig Bor Batu Aplikasi: Baut, drifting • Pengeboran bangku • Pengeboran produksi
Pelabuhan: Tianjin Qingdao
Menyoroti:

Domed Plates Friction Rock Bolt Stabilizers

,

Galvanized Friction Rock Bolt Stabilizers

,

47mm Friction Rock Bolt Stabilizers

Galvanized and Black 47mm Split Set Bolt with Domed Plates Friction Rock Bolt Stabilizers
Product Description

Split set is also know as friction bolt.
It is a rock support method used in underground mining and tunnel construction.The bolt consists of a high strength steel bolt with a ''U'' shape cross section and a longitudinal groove.
To install a Split Set bolt, a hole is made in the rock with a diameter slightly smaller than the bolt’s diameter, and the Split Set is inserted into it. As the bolt is pushed into the rock, the “U” shaped cross-section reduces and adjusts to the shape of the borehole. This expansion creates friction between the Split Set and the surrounding rock along its entire length, providing strong resistance to displacement

Product Specifications
Item no Dimeter Steel Min Yield Plate size
MF33 33mm 2.5mm 78KN 150*150*4.0
MF39 39mm 2.5mm 88KN 150*150*4.0
MF42 42mm 2.5mm 95KN 150*150*4.5
MF47 47mm 3.0mm 125KN 150*150*5.0



Product Images

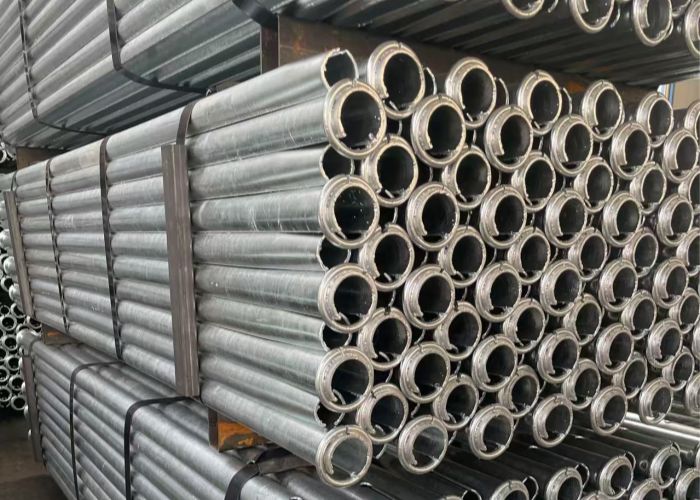

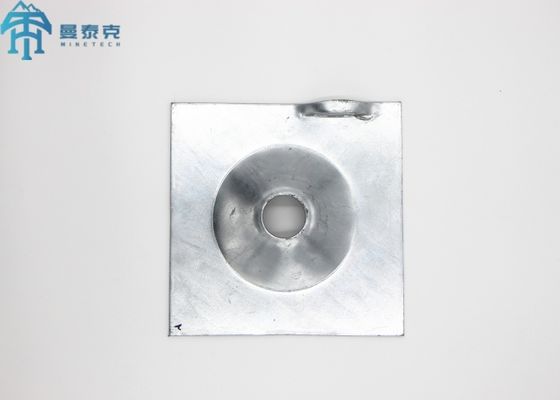

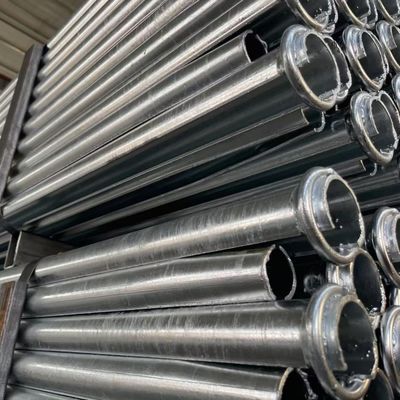

Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates 0
Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates 1
Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates 2 Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates 3 Galvanized Black 47mm Split Set Friction Rock Bolt Stabilizers With Domed Plates 4
Order Information
  • Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight
  • Handling time for an order: Within 10 days supplied from stock
  • Shipping way:
    Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
    Bulk order: we suggest by air or by sea.
  • Quality Control: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
  • After Services:
    a. Our sales team will response for your question within 24 hours (Holidays Excluded)
    b. Technical Support will be available in any time
    c. Free replacement will provide once the failure confirmed caused by our product quality
