Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt

Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt
Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt
Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt

Gambar besar :  Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt

Detail produk:
Tempat asal: Cina
Nama merek: Minetech
Sertifikasi: ISO9001
Nomor model: Baut swadaya batang jangkar berlubang
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: $3-$15
Kemasan rincian: 1/karton
Waktu pengiriman: 15-30 hari
Syarat-syarat pembayaran: Serikat Barat, MoneyGram, T/T, L/C
Menyediakan kemampuan: 30000 lembar per bulan
Kontak

Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt

Deskripsi
Nama Produk: Baut swadaya batang jangkar berlubang Kata kunci: Baut pengeboran sendiri
Tipe model: T30/16 T30/14 T30/11 Warna: disesuaikan
Kemasan: Kasing kayu Jenis pemrosesan: Penempaan
Jenis mesin: Rig Bor Batu Aplikasi: Baut, drifting • Pengeboran bangku • Pengeboran produksi
Pelabuhan: Tianjin Qingdao
Menyoroti:

Rock Self Drilling Anchor Bolt

,

Left Hand Threaded Rock Bolt

,

Hollow Rock Bolt

Hollow Anchor Bar Self-Drilling Bolt Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt
Product Description

Self drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micropiles, it is also widely used in the railway system, metro project etc. It can be installed in sites with weak rocks, loose soil, weathered layer, sand with stone layer and so difficult to create a hole in complex formations. The unconsolidated ground condition favor the self-drilling anchor bolt technique for fast and simple method of installation compared to the traditional method.

Product Specifications
Item Inner diameter(mm) Ultimate load strength(KN) Yield strength(KN) Weight(kg)
R25N 14 200 150 2.3
R32N 21 280 230 3.1
R32N 18.5 280 230 3.4
R32S 16 360 280 3.6
R32SS 15 405 350 4.1
R38N 21 500 400 4.8
R38N 19 500 400 5.5
R51L 36 550 450 7
R51N 33 550 630 8.4
T30 11 320 260 3.41
T30 14 275 220 2.87
T30 16 245 190 2.7
T40 16 660 525 7
T40 20 540 425 5.6
T52 26 925 730 9.87
T73 53 1160 970 14.1
T73 56 1035 830 10.75
T76N 52 1600 1200 15
T76S 45 1900 1500 19.7
T103 51 3660 2670 44.6
T130 60 7940 5250 75



Features:

1, Self drilling anchor system has two performances: the one is drilling, the other one is grouting. It features a hollow bore for flushing, or simultaneous drilling and grouting.

2, Self drilling anchor system is reliable, efficient and convenient, which makes high piling output possible.

3, We can also make the Hot-Dip Galvanizing Corrosion Protection according to EN ISO1461

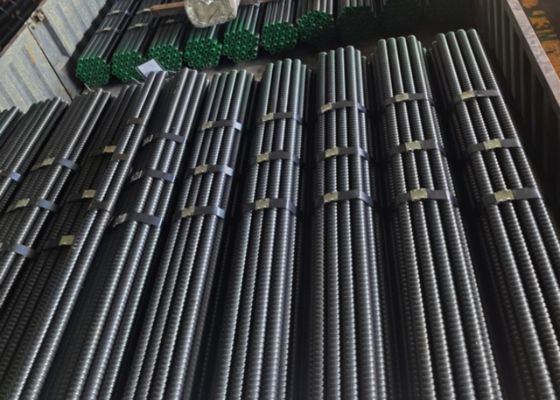

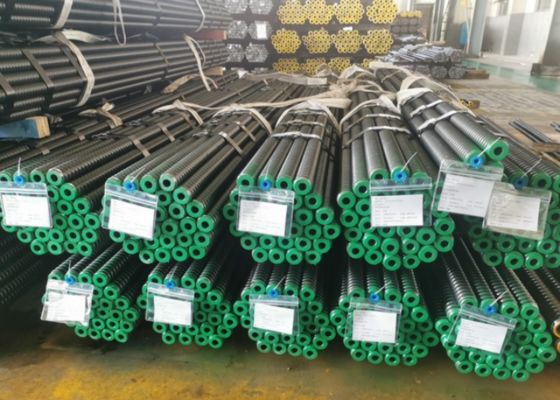

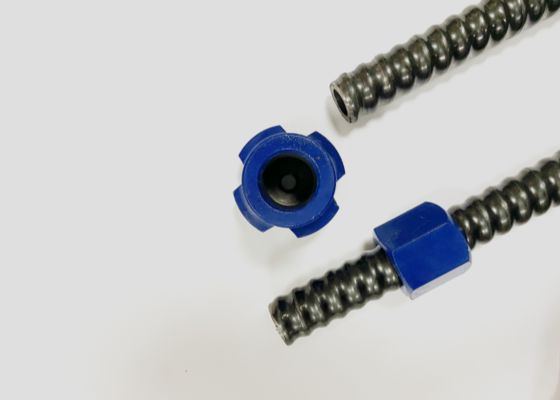

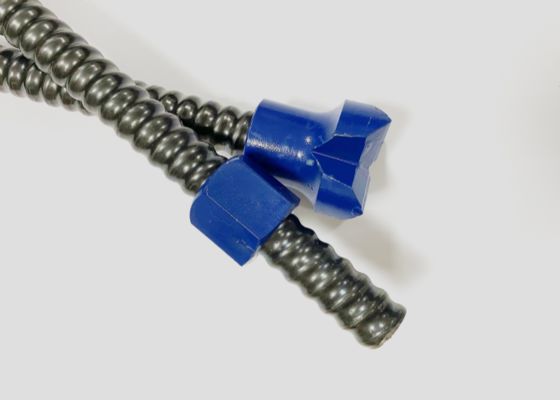

Product Images
Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt 0Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt 1
Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt 2 Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt 3 Hollow Self Drilling Anchor Left Hand Threaded Rod T30/16 T30/14 T30/11 Expansion Shell Rock Bolt 4
Order Information
  • Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight
  • Handling time for an order: Within 10 days supplied from stock
  • Shipping way:
    Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
    Bulk order: we suggest by air or by sea.
  • Quality Control: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
  • After Services:
    a. Our sales team will response for your question within 24 hours (Holidays Excluded)
    b. Technical Support will be available in any time
    c. Free replacement will provide once the failure confirmed caused by our product quality

Label:

Customized Self Drilling Anchor Bolt,

280kN R32 Self Drilling Anchor,

T76 Rock Bolting Tools
