64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well

64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well
64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well
64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well 64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well 64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well 64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well

Gambar besar :  64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well

Detail produk:
Tempat asal: CINA
Nama merek: MTH
Sertifikasi: ISO 9001
Nomor model: T45
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 50 PC
Harga: Bisa dinegosiasikan
Kemasan rincian: Kasing kayu
Waktu pengiriman: 10-15 hari
Syarat-syarat pembayaran: Western Union, MoneyGram, T/T.
Menyediakan kemampuan: 3000 buah per bulan
Kontak

64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well

Deskripsi
Nama Produk: Bit tombol retrac Thread Jenis pemrosesan: Penempaan
Tipe Mesin: Alat pengeboran, peralatan pengeboran Menggunakan: Penambangan Bijih, Penambangan Batubara
Warna: Merah, Emas, Wajib Diameter: 64-127mm
Aplikasi: Pengeboran Batuan, Sumur Penambangan Ukuran: T51 T45 T38 R32
Menyoroti:

T45 retrac thread button bit

,

rock drill retract button bit

,

button bit drilling tools

Rock Drill T45 Button Bit Drilling Tools Retrac Thread Button Bit
Product Description
These thread drill bits are manufactured using high-quality alloy steel bars and premium tungsten carbide. Available in various thread types including R25, R28, R32, SR35, R38, T45, T51, ST58, GT60, and ST68. The drill bit head diameters range from 32mm to 152mm, with button options in spherical, ballistic, and conical shapes. Face configurations include flat, drop-center, and engrave shapes, while body styles feature both normal and retrac designs. Ideal for tunnel construction and large-scale mining operations, including open-pit and underground copper, gold, and other mineral extraction.
Product Features
  • Raised center design ensures center buttons contact rock first, improving collaring and hole straightness
  • Optimized flushing hole configuration (3-4 holes depending on diameter) with equally spaced grooves for balanced air flow and reduced gauge button wear
  • Slot-free face design promotes even air distribution, better cuttings clearance, and optimal button placement
  • Precisely positioned buttons provide complete cutting coverage with just 90° rotation, eliminating rock re-breaking and missed areas
  • Even load distribution across all buttons minimizes breakage risk and extends service life
Technical Specifications
Size Front Buttons Gauge Buttons Buckle Type Weight
64mm 4×10 8×10 R32 2.2KG
76mm 4×11 8×11 T38 3.3KG
89mm 6×13 8×12 T38 4.8KG
102mm 6×13 8×13 T45 6.8KG
115mm 6×14 8×14 T51 9.8KG
127mm 8×14 8×16 T51 12KG

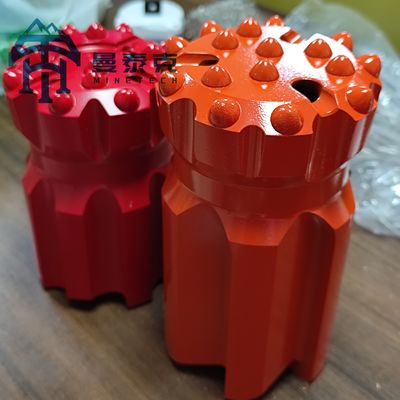

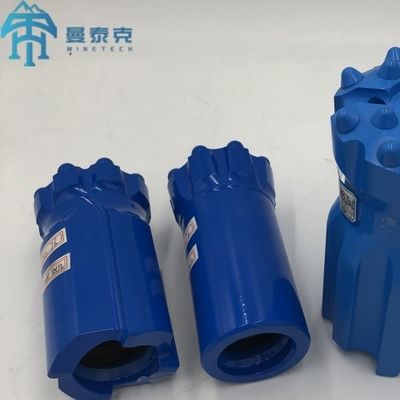

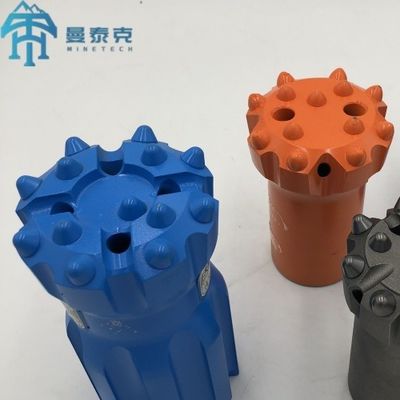

Product Images
64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well 0 64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well 1

64-127mm Forging Retract Button Bit with Raised Center for Rock Drilling and Mining Well 2

Label:

T51 Retract Button Bit,

89mm Retract Button Bit,

R32 tungsten carbide rock drill bit
