Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed

Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed
Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed
Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed

Gambar besar :  Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed

Detail produk:
Tempat asal: Tiongkok
Nama merek: MTH
Sertifikasi: ISO 9001
Nomor model: Y26
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: Bisa dinegosiasikan

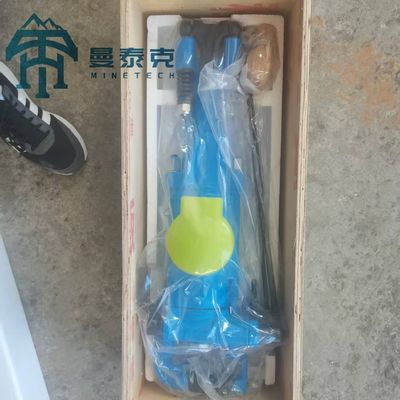

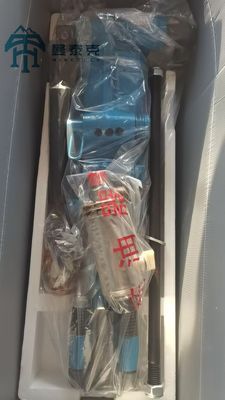

Kemasan rincian: kotak kayu
Waktu pengiriman: 10-15 hari
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 1000 buah per bulan
Kontak

Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed

Deskripsi
Nama Produk: Bor Batu Y26 Aplikasi: pengeboran dan pemecahan lubang ledakan, pemecahan trotoar
Cocok Untuk: Tanah dan batu Tipe Mesin: alat pengeboran
Panjang: 645mm Kedalaman pengeboran: 5m
Diameter lubang pengeboran: 32mm kecepatan lubang bor: ≥475mm/mnt
Menyoroti:

hand-held pneumatic rock drill

,

quarry granite drilling machine

,

Y26 hand operated rock drill

Petrol Stone Drilling Machine Quarry Granite Drill Hand-held Pneumatic Rock Drill Y26 Machine Hand Operated
Product Introduction
The Y26 Hand-held Pneumatic Rock Drill is designed for efficient drilling in quarrying and mining operations. It supports wet or dry drilling in various rock types, offering a lightweight design for convenient operation and high drilling velocity.
  • Drilling depth of up to 5 meters
  • Bore diameter range of 34-42mm for versatile applications
  • Lightweight design for easy handling
  • No minimum order quantity for testing and trial orders
  • Suitable for small-scale projects
Technical Specifications
Model Type Y19A
Weight 19 Kg
Length 600 mm
Cylinder Diameter 65 mm
Working Air Pressure 0.4 Mpa
Impact Energy ≥30 J
Impact Frequency ≥23 Hz
Air Consumption ≤47 L/s
Idle Speed ≥200 r/min
Noise Level ≤124 dBA
Working Water Pressure 0.3-0.35 Mpa
Air Pipe Inner Diameter 19 mm
Water Pipe Inner Diameter 13 mm
Drill Hole Diameter 34-42 mm
Drill Hole Depth 5 m
Shank Size 25x108 mm
FY200 Lubricator Specifications
Weight 1.2 kg
Oil Capacity 1.2 L
Manufacturer Information
Hebei Minetech Machinery Technology Co, Ltd is a joint venture enterprise with European partners, located in Shijiazhuang City, Hebei Province, China. We specialize in manufacturing and exporting mining machinery including hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and rods.
With over a decade of experience and a professional team, we provide complete solutions for mining machinery. Our products are exported to more than thirty countries including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, and South America, establishing a strong international reputation.




Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed 0

Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed 1

Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed 2

Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed 3 Y26 Machine Hand-held Pneumatic Rock Drill with 32MM Drilling Hole Diameter and 475mm/min Borehole Speed 4
